The Thermo Scientific™ Elescan™ XRF-100 Online Multi-stream Analyzer provides real-time elemental analysis of slurry streams in mining and mineral processing operations.

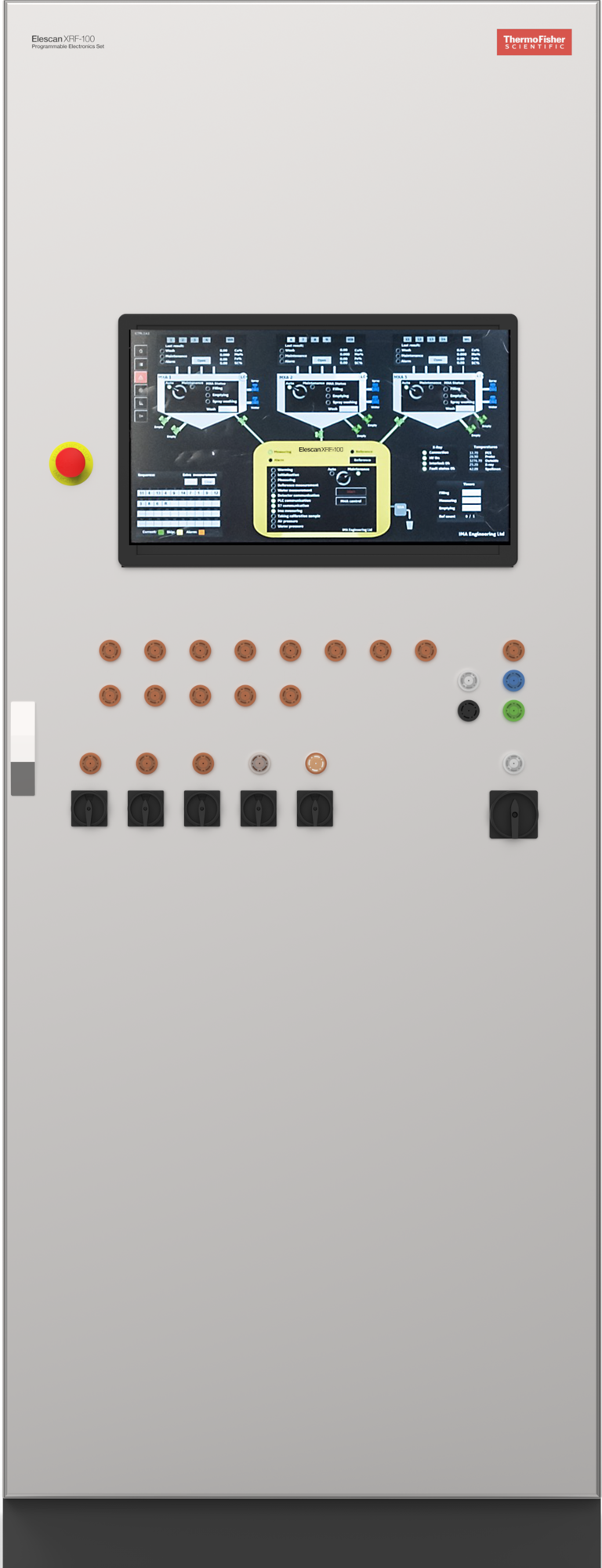

Elescan™ XRF-100 Online Multi-stream Elemental Slurry Analyzer. Image Credit: Thermo Fisher Scientific – Production Process & Analytics
The Thermo Scientific™ Elescan™ XRF-100 Online Multi-stream Elemental Slurry Analyzer is an advanced tool designed for real-time elemental analysis of slurry streams in mining and mineral processing. Utilizing energy-dispersive X-ray fluorescence (EDXRF), it delivers precise measurements of metal concentrations in critical process streams, supporting process control decisions and troubleshooting beneficiation circuits to minimize metal losses and optimize reagent consumption.
A key benefit of integrating EDXRF technology (which employs a single detector to analyze multiple elements) with a low-power, air-cooled X-ray tube is the availability of a continuous X-ray energy spectrum. This enables the detection of unexpected elements as ore deposits change over time.
This approach also allows for the use of an economical, low-power excitation source compared to WDXRF systems. With an extended service life, replacement costs are significantly lower than those of WDXRF excitation sources while still offering excellent energy resolution, high counting rates, and rapid cycle times in a multiplexed analyzer.
Elescan™ XRF-100 Online Multi-stream Elemental Slurry Analyzer. Image Credit: Thermo Fisher Scientific – Production Process & Analytics
Specifications. Source: Thermo Fisher Scientific – Production Process & Analytics
| . |
. |
| Type |
XRF Instrument |
| Sample Type |
Sample flow rates
Recommended: 100–200 I/minute
Min–Max range: 70–250 I/minute |
| Weight (Metric) |
Total system weight (12 lines)
1100 kg |
| Unit Size |
Each |
