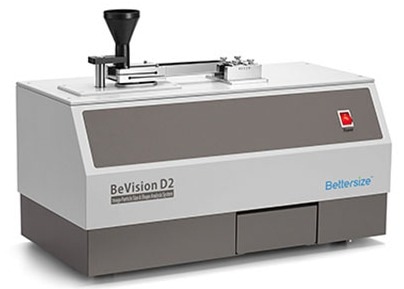

The BeVision D2 dynamic image analyzer from Bettersize Technologies offers users an efficient means of analyzing the size and shape of dry, high-flowability granules or powders.
This instrument can measure tens of thousands of particles within 3 minutes, thanks to its powerful combination of a high-speed camera and precise telecentric lens.
The BeVision D2 is capable of analyzing the size and shape of particles within the range of 30 - 10000 μm.
Features and Benefits
- A wide measurement range of 30 - 10000 µm
- Able to accommodate 24 different particle size and shape parameters
- High sample throughput, with the ability to measure 10,000 particles within 3 minutes
- Consistently excellent reproducibility
- Fully automated operation ensures maximum efficiency
- All results comply with ISO 9276-6 requirements
- Comprehensive evaluation, thanks to the instrument’s powerful software
- Results are comparable with sieving
Specifications
Source: Bettersize Instruments Ltd.
| BeVision D2 |
| General |
| Measuring principle |
Dynamic image analysis method |
| Parameters |
Particle size, shape, and number |
| Measurement performance |
| Measuring range |
30 – 10,000 μm |
| Typical measurement time |
1 to 3 min * |
| Number of size / shape classes |
100 (user adjustable) |
| Special functions |
SOP settings, automatic tests, analysis of saved images |
| Main device |
| High-speed CCD camera |
Up to 120 images per second |
| Light source |
White LED stroboscopic parallel light source |
| System parameters |
| Dimensions (L × W × H) |
61.0 × 35.0 × 44.0 cm |
| Weight |
26 kg |
| Supply voltage |
100 / 240 V, 50 / 60 Hz |
| Software |
| Conformity |
ISO 13322, ISO 9276 |
| Reports |
Customizable reporting |
* Sample and sample preparation dependent
