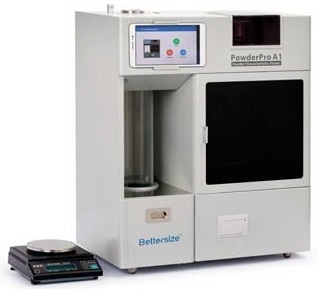

The PowderPro A1 from Bettersize Instruments integrates a range of state-of-the-art technologies, including advanced image processing technology, intelligent control via wi-fi, and three-dimensional electromagnetic vibration technology.
The PowderPro A1 is able to rapidly and accurately measure the physical properties of powders in a straightforward fashion. This intelligent powder characteristics tester represents an essential instrument for any user looking to research and better understand the characteristics of powder materials.
Features and Benefits
- Compact design
- Multiple control features
- Easily accessible and convenient data output
- Intelligent transmission of data
- Powerful automated control technology
- Robust automated imaging technology
Specifications
Source: Bettersize Instruments Ltd.
| Specification of PowderPro A1 Powder Characteristics Tester |
| Powder |
Type |
Metallic Materials (Fe, Ni, alloy, etc.) |
| |
|
Non-metallic Materials (CaCO3, SiO2, Polymer, etc.) |
| Parameters |
Number |
9 (Measured) + 5 (Calculated) |
| Measuring Angle |
Method |
Fully Automatic by CCD Camera |
| |
Range |
0-90° |
| Repeatability |
|
≤ 3％ |
| Tapping |
Frequency |
50-300 taps/min (Continuous Adjustment) |
| |
Stroke Height |
3 or 14 mm |
| |
Display |
Digital Display |
| Conformity |
ISO |
ISO 3953: 2011 |
| |
USP |
USP 32 - NF 27 <616> |
| |
Ph. Eur |
Ph. Eur. 7.0 07 / 2010: 20934E |
| Control Terminal |
Tablet |
Android System |
| |
Phone |
Android System |
| |
PC |
Windows System |
| Connection |
|
Wi-Fi, LAN |
| Dimensions |
|
600 × 350 × 730 mm (L × W × H) |
| Weight |
|
42 kg |
| Power supply |
|
AC 110/220 V, 50/60 Hz, 230 W |
What is angle of repose? Why and how do we measure it?
Video Credit: Bettersize Instruments Ltd.
