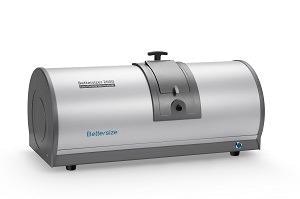

The Bettersizer 2600 uses Laser Diffraction Technology to measure particles with sizes ranging from 0.02 to 2,600 μm. There are 92 photoelectric detectors that convert light signals from the scattering spectrum to electrical signals, which are then sent to intelligent software. The accurate and reliable particle size distribution can be obtained by applying the Mie scattering theory to the data and performing mathematical conversions.

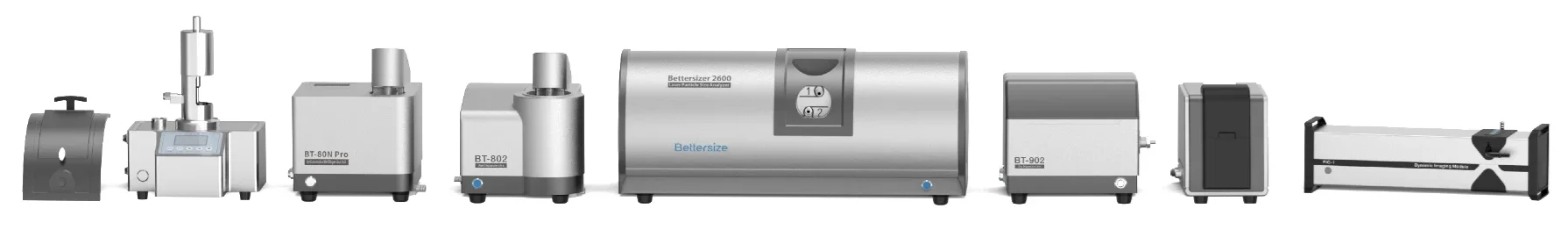

The Bettersizer 2600's modular design makes it versatile. The dynamic imaging module combines laser and imaging tests, extending the measurement range to 3,500 μm and analyzing particle size and shape. The various dispersion system modules cater to a wide range of testing requirements, including both dry and wet dispersion methods.
BT-A60 Autosampler | Automated Efficiency in Particle Test
Video Credit: Bettersize Instruments Ltd.
Features and Benefits
- Auto-alignment of the laser diffraction system: elimination of manual adjustments
- Modular dual-camera imaging system: 24 detailed particle parameters
- Seamless switching dispersion units that can be used with wet or dry techniques
- Software designed with ease of use and efficiency in mind
- Dual optical system: Laser Diffraction and Dynamic Imaging
- Compliance with ISO 13320, 21 CFR Part 11, USP <429>, ISO 13322-2
- Measurement: Particle size and shape
- Wide particle size range: wet dispersion: 0.02 to 2,600 μm; dry dispersion: 0.1 to 2,600 μm; dynamic image: 2.0 to 3,500 μm
- Advanced laser diffraction system: A Combination of Fourier and inverse Fourier design
- 92 distributed spherical detectors array: detection of light signals from 0.016° to 165°

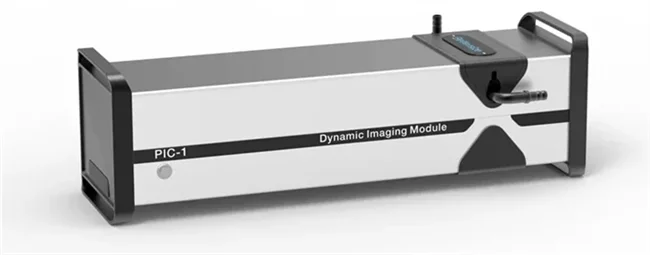

Dynamic Imaging Module: PIC-1. Image Credit: Bettersize Instruments Ltd.

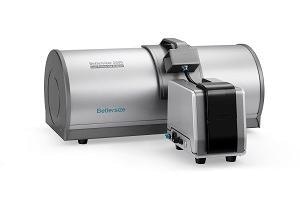

The Bettersizer 2600 laser particle size analyzer and the wet dispersion system can be seamlessly integrated with the PIC-1 dynamic imaging module, a flexible and all-inclusive dynamic image analysis tool.
Parameter and Specification
- Particle size range: 2–3,500 μm*
- Size and shape parameters: 24
- Camera type: CCD sensor, 1.5 Megapixels
- Imaging rate: 120 fps
- Illumination: White and blue LED
- Image recognition: Up to 10,000 particles per minute
- Magnification: 0.5× and 10×
Source: Bettersize Instruments Ltd.

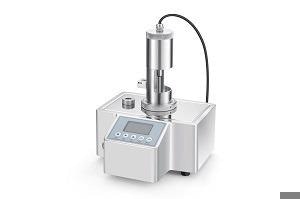

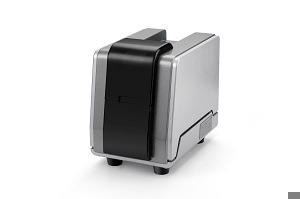

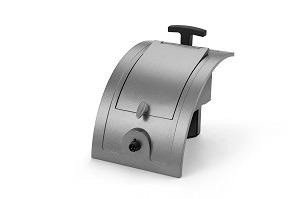

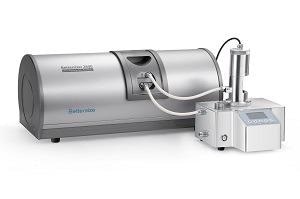

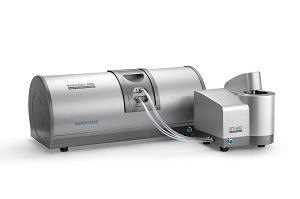

| Sample Dispersion Modules |

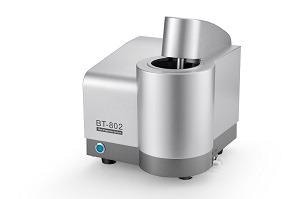

BT-802 |
BT - 804 |
BT-80N |

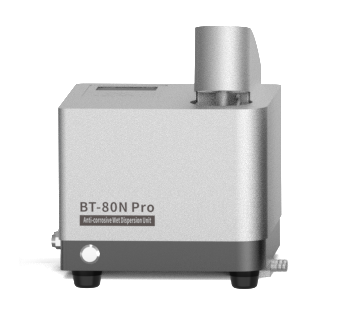

BT - 80N Pro |

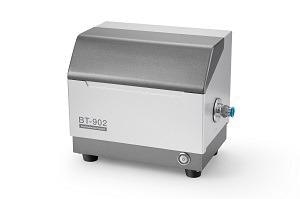

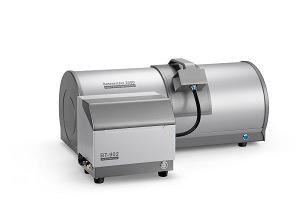

BT-902 |
BT-903 |
| Sample Dispersion |
Wet sample dispersion |
Wet small volume sample dispersion |
Anti-corrosive sample dispersion |
Anti-corrosive Wet sample dispersion |
Dry sample dispersion |
Dry small volume sample dispersion |
| Dispersion Modules |
 |
 |
 |
 |
 |
 |
| Combine with Main Device |
 |
 |
 |
 |
 |
 |
| Volume / Sample Mass |
600 mL |
8 mL |
50 - 80 mL (dispersion medium) |
80 - 200 mL
(dispersion medium) |
0.2 g-10 g |
0.05 g-1 g |
| Automation |
Fully automated |
Semi-automated |
Semi-automated |
Fully automated |
Fully automated |
Fully automated |
Intuitive and Powerful Software
- Conversion from wet to dry dispersion can be done just by clicking a button
- Editable reports and automatic data backup
- Accurate analysis accomplished through appropriate application of the Fraunhofer or Mie assessment models according to sample size and type
- Simple to use with an apparent intuitive interface
- Easy-to-use SOP operation
- Automatic cleaning routine
- Real-time mode for finding out the ideal measurement conditions
- Completely automated measurement routine with automatic calibration
Applications
Applications for the instrument can be found in the following domains:
- 3D Printing Materials
- Abrasives
- Batteries
- Building Materials
- Food and Beverage
- Mining and Materials
- Paints, Inks, and Coatings
- Pharmaceuticals
- Ceramics
- Cosmetics
Image Credit: Bettersize Instruments Ltd.
